Intro

💡

This guide assumes you have a customizable Arcade-size Controller (ASC).

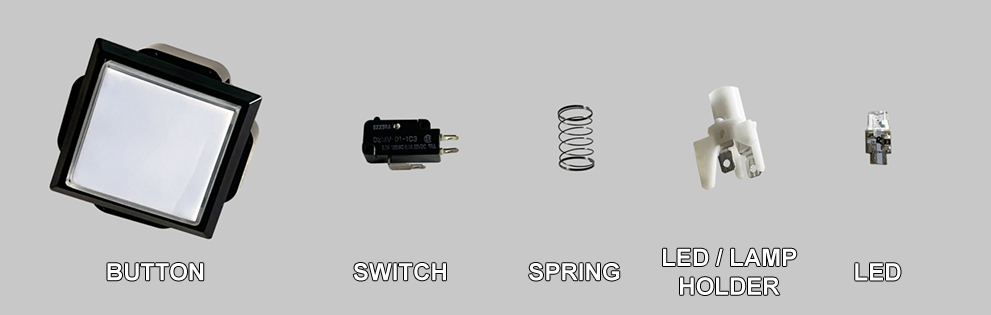

The three main things to customize are buttons, switches, and springs. Buttons are what you physically push down to activate a switch and are given weight by a spring inside. Switches have their own weight and provide a tactile click which contribute most to the overall push feel.

Play configurations are commonly presented as switch weight / spring weight, both assumed to be in grams. For example, a 100g switch paired with a 20g spring is called a 100/20 configuration.

There are no tools required to swap out any of these parts.

Parts

Buttons

There are two types of buttons: DJDAO (also known as Chinese buttons) and Sanwa. All official Sound Voltex cabinets use Sanwa buttons. Buttons are a one-time purchase. They rarely, if ever, break or need to be replaced.

DJDAO/Chinese

+ Cheaper
- Made of lower quality plastic
- More likely to get stuck

Sanwa

+ High quality plastic
+ Same buttons used in arcade cabinets
- Expensive (around $100 for a full set)

Switches

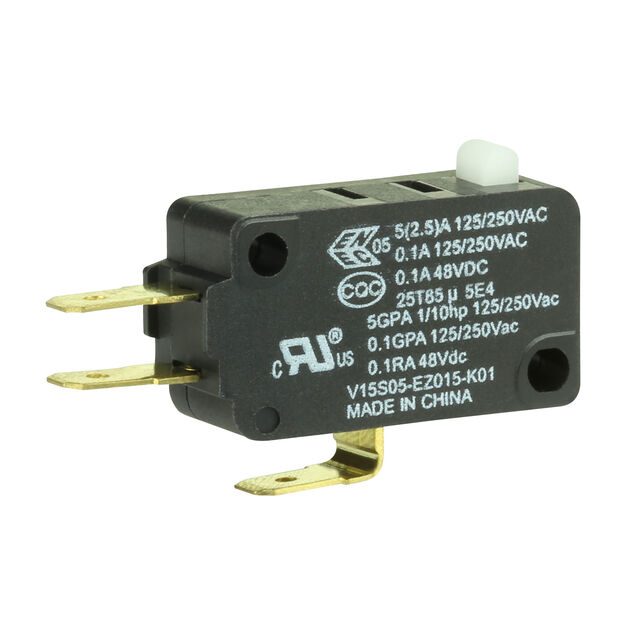

Honeywell

Cheap
Poor quality and durability
Often very light which leads to accidental presses

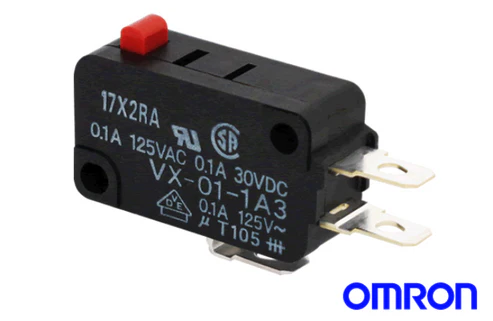

OMRON

Most common switches for ASCs
Good quality and durability

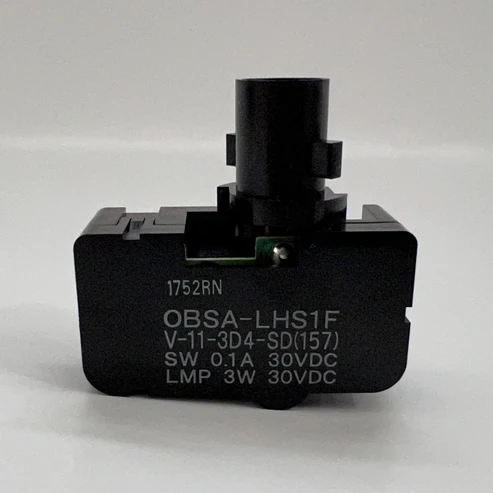

OBSA-LHS1F

Expensive
Only compatible with Sanwa Buttons
Used in arcade cabinets
Inconsistent durability depending on production batch

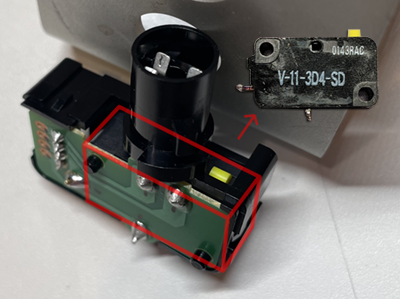

These are commonly referred to as “integrated” switches as the switch is housed (somewhat permanently) inside of the lampholder:

Unfortunately this means you have to buy an entire replacement instead of just replacing the switch if one dies.

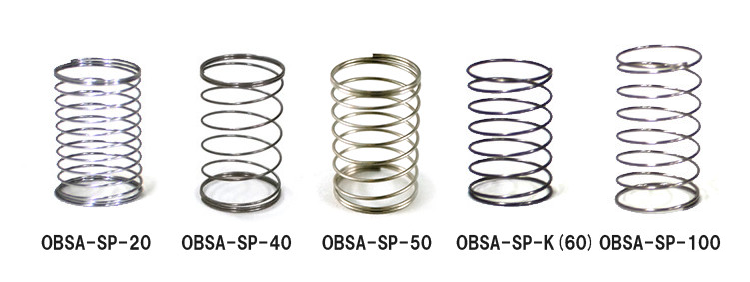

Springs

Springs come in various weights between 20g and 100g. Heavier springs rebound the buttons faster which can make certain patterns easier but can get tiring to press. On the other hand, lighter springs do not rebound as fast but take less energy overall.

Although these springs are made by Sanwa, they are compatible with both DJDAO/Chinese and Sanwa buttons.

Recommendations

Switch and spring configuration is ultimately a matter of preference; players have found success with all sorts of combinations. Other factors such as technique matter too, so do not fall into the trap of thinking configuration is everything.

That being said, the easy recommendation is to minimize the difference between home and arcade play by copying the configuration used in Valkyrie Model cabinets:

For most of the world, use 100g switches with 20g springs
For Korea specifically, use 50g switches with anywhere from 60g to 100g springs (it seems to vary depending on the arcade)

Specific switch models:

OMRON V-10-1A4 (100g)
OMRON VX-01-1C23 (50g)
OMRON VX-01-1A3 (50g)
Sanwa OBSA-LHS1F (100g)

All OMRON switches are compatible with both DJDAO/Chinese and Sanwa buttons. Sanwa’s OBSA-LHS1F switches are compatible with Sanwa buttons only and only recommended for players who want complete arcade accuracy.
